13 degree XPG3 TIR lens design report
2021-06-21(981)Views

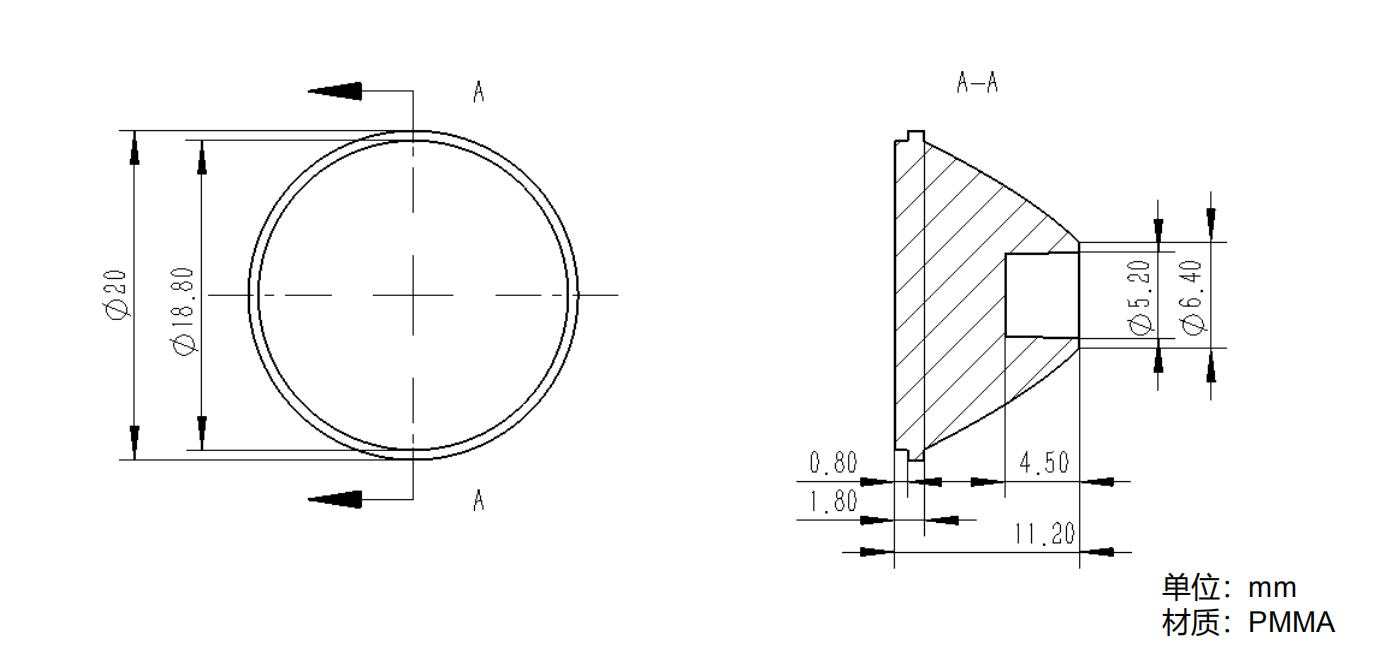

Product size chart
Assembly relationship
Simulation results
1/ Illumination spot diagram
2/ Light distribution curve
3/ Result analysis

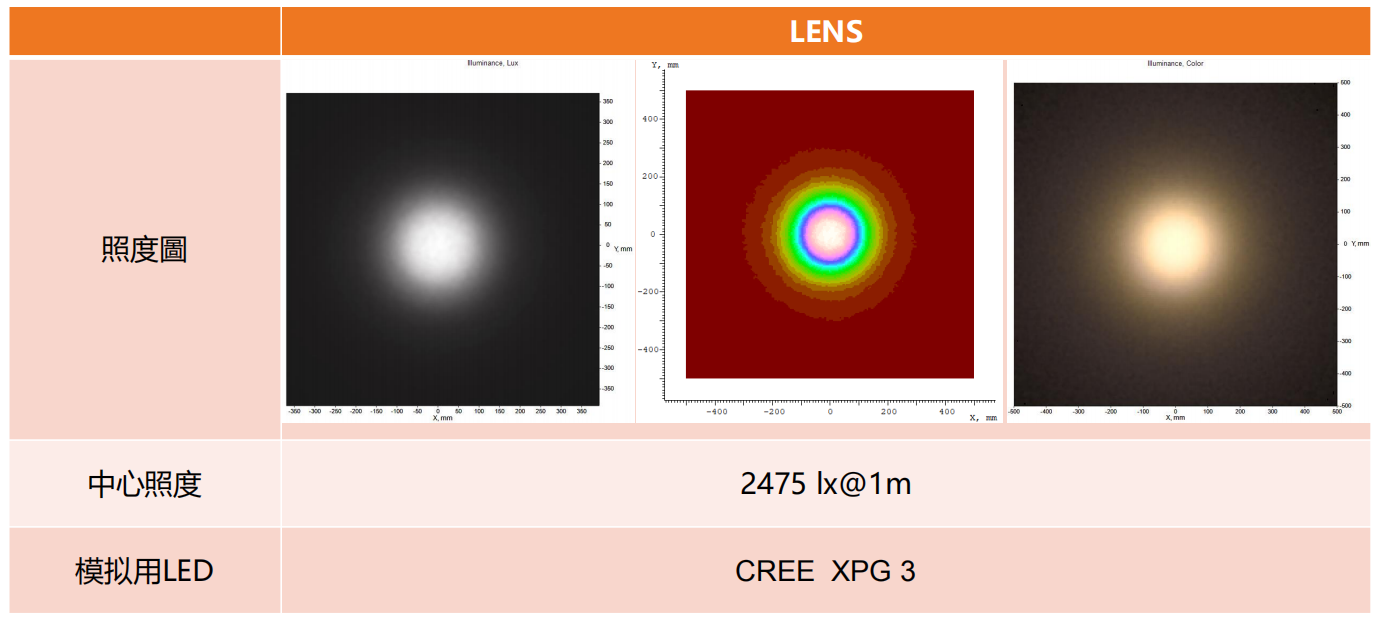

Illumination diagram (analysis 1x1m, @1m)
...
Product size chart
Assembly relationship
Simulation results
1/ Illumination spot diagram
2/ Light distribution curve
3/ Result analysis
Illumination diagram (analysis 1x1m, @1m)

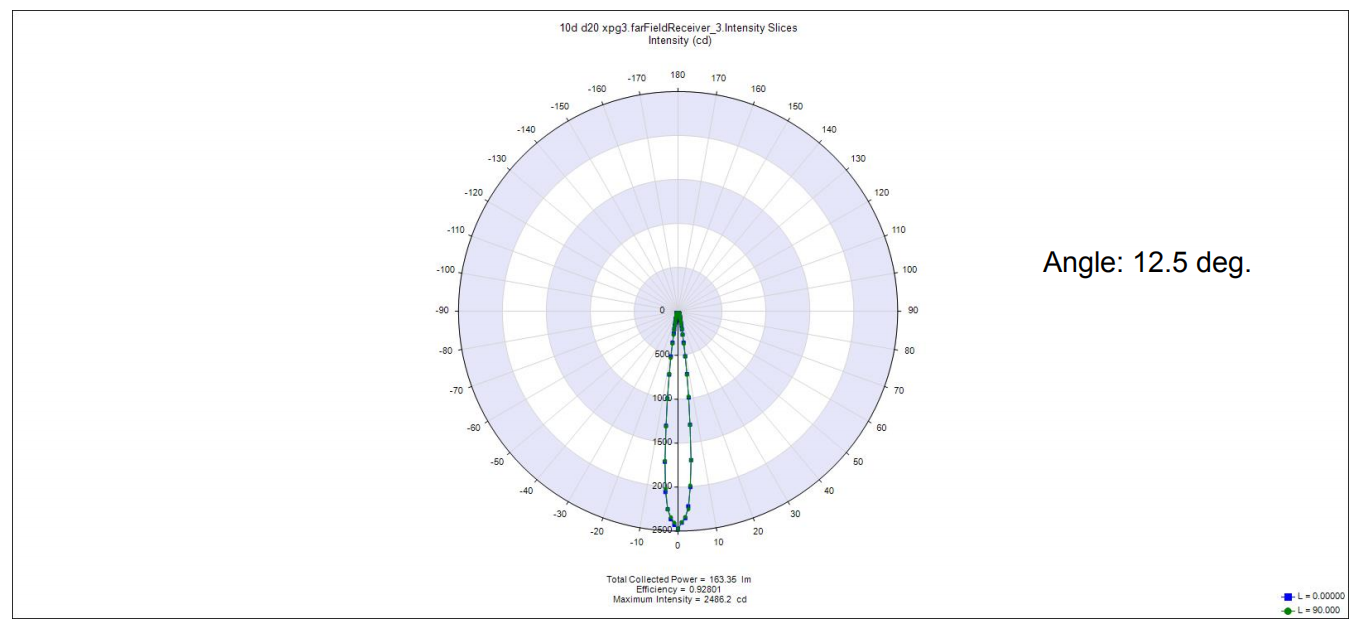

Light distribution curve

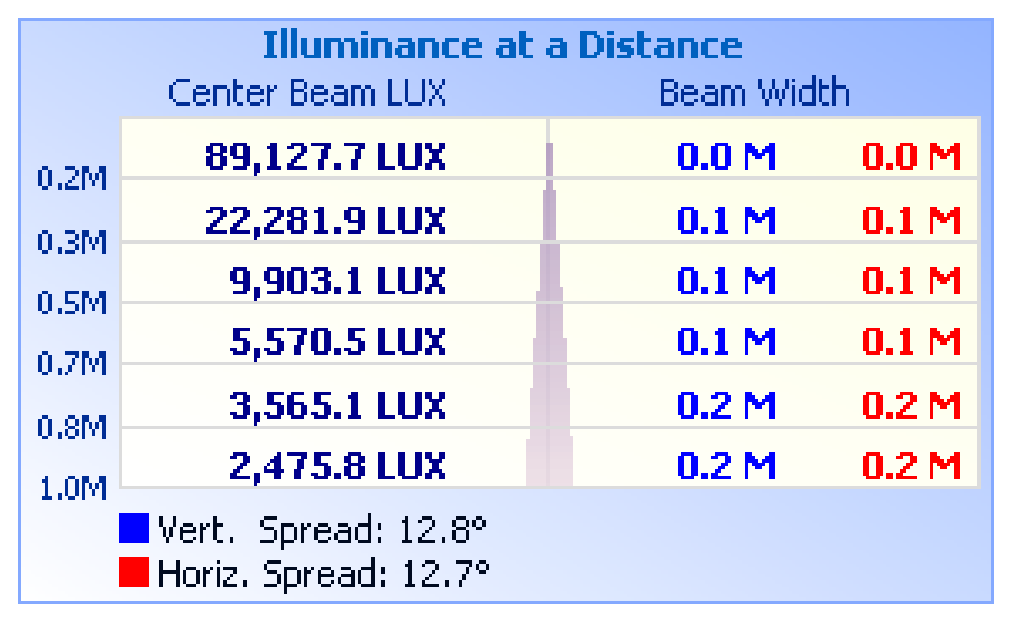

Center illuminance value
